Bedford 57-1749 Sleeve is Graco 183571 aftermarket replacement

Graco 183571 Sleeve (Ultra 400/500, EM380/390/490) — AfterMarket by Bedford Precision Parts

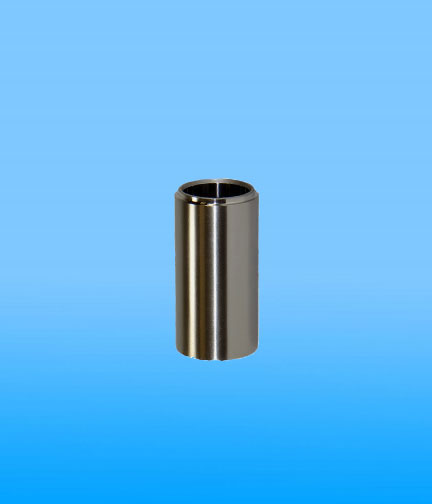

Bedford Precision Parts aftermarket replacement of the OEM Graco 183571 sleeve (also noted in older manuals as 183-571). Bedford part number 57-1749 is built to meet rigorous performance standards, delivering a dependable, cost-effective alternative to OEM.

What it fits & where it’s used

The 57-1749 sleeve replaces the cylinder sleeve in the fluid section of select Graco airless sprayers—specifically Ultra 400/500 and EM380/390/490 models. It restores proper sealing and pump efficiency when wear causes loss of pressure, leakage, or pulsation.

• Replaces: Graco 183571 (183-571).
• Bedford PN: 57-1749.
• Compatible Models: Ultra 400/500; EM380/390/490.
• Build & Quality: American-made aftermarket alternative by Bedford Precision.

Why choose this aftermarket sleeve?

• Direct fit: Engineered to replace the OEM sleeve for reliable sealing and smooth pump operation.
• Pro value: Bedford’s manufacturing delivers consistent performance for contractors maintaining older Ultra and EM series units.
• Service clarity: Identified in many references as a “cylinder sleeve,” making it an easy pick during pump rebuilds.

Installation tips

• Inspect packings, piston rod, and check balls/seats while the pump is open; replacing worn items together extends service intervals.
• After reassembly, prime and pressure-test to verify a stable pattern and proper pump pressure. (Follow your Graco service manual.)
