Bedford 20-3824 is Graco 224401 Repair Kit aftermarket replacement

Graco 224401 10:1 President Repair Kit — AfterMarket by Bedford Precision

This professional rebuild set replaces Graco 224401 and is supplied as an AfterMarket by Bedford Precision Parts of the OEM product. Use it to refresh critical wear components in 10:1 Graco President pumps so your system can re-prime quickly, hold steady pressure, and deliver a clean, consistent finish.

Where it fits & typical use

• Fits: Graco President 10:1 pneumatic pump lowers that specify repair kit 224401 (verify your exact pump ratio, lower style, and bill of materials in the service manual).
• Used in: Wood/metal finishing, fabrication, and industrial coating lines feeding professional paint sprayer guns on production shifts.

What this kit does

• Replaces worn packings, seals, and check components that cause leakage, pulsation, and pressure loss.
• Helps restore prime, stabilize operating pressure, and maintain uniform film build and atomization.
• Built to match OEM form and function for predictable installation and performance.

Why choose Bedford’s aftermarket solution

• Cost-effective alternative that supports planned maintenance cycles and reduces downtime.
• Consistent dimensions/materials for repeatable rebuild quality across your fleet of graco paint sprayer parts.
• Ideal for shops standardizing inventories and procedures for faster service turnarounds.

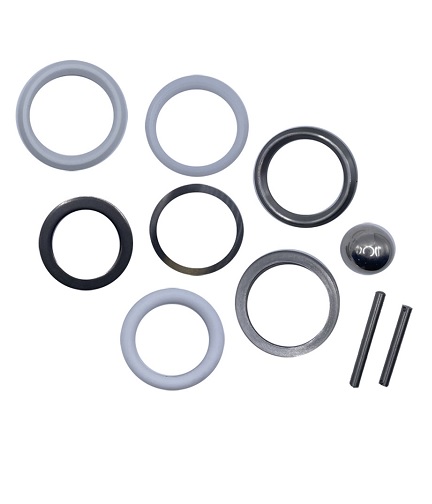

What you receive

• Aftermarket kit replacing Graco 224401 for 10:1 President pumps
• Typical contents include packing sets, O-rings, backup rings, and related wear components

Exact contents may vary by manufacturer’s supply. Inspect pistons, rods, balls, and seats; replace additional worn parts as needed.

Installation notes

• Clean all wetted passages and mating surfaces; assemble with appropriate lubricant.
• Torque fasteners to specification and perform a leak/pressure test before returning to production.

Cross-reference: Replaces Graco 224401 (10:1 President). Always confirm compatibility using your model/serial and service documentation.
