Bedford 20-2938 Repair Kit is Graco 244851 aftermarket replacement

Graco 244851 180cc Xtreme 750 Repair Kit — AfterMarket by Bedford Precision

This professional rebuild set replaces Graco 244851 and is supplied as an AfterMarket by Bedford Precision Parts of the OEM product. It refreshes the wear components in Xtreme 750 pumps with 180cc lowers so your system can re-prime quickly, hold stable pressure, and deliver a clean, consistent pattern to your production paint sprayer guns.

Where it fits & typical use

• Fits: Graco Xtreme 750 pump configurations that specify a 180cc lower (confirm your exact lower size, ratio, and bill of materials in the service manual).
• Used in: Wood/metal finishing, fabrication, protective coatings, and general industrial finishing lines feeding high-duty pumps and guns.
• Ideal for shops standardizing on graco paint sprayer parts for predictable maintenance and uptime.

What this kit does

• Replaces worn packings and seals that cause leakage, pulsation, and pressure loss.
• Restores prime, smooths pressure delivery, and helps maintain uniform film build.
• Built to match OEM form and function for a confident, repeatable rebuild.

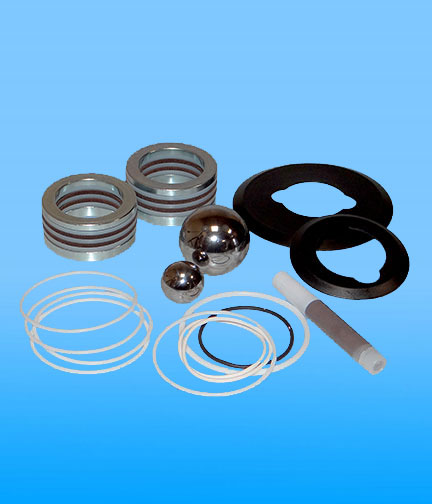

Typical contents

• Upper/lower packing sets, backup rings, and O-rings
• Retainers/glands and related wear items for the 180cc lower

Exact contents may vary by manufacturer’s supply. Inspect piston/rod, checks, balls, and seats; replace additional worn components as needed.

Installation notes

• Clean all wetted parts and mating surfaces thoroughly before assembly.
• Lubricate per the service manual and torque fasteners to specification.
• After reassembly, perform a leak/pressure test and verify spray pattern before returning to production.

Cross-reference: Replaces Graco 244851 (Xtreme 750, 180cc lower). Always verify compatibility by part number, pump configuration, and serial data.
