Bedford 20-3200 Repair Kit is Graco 24A253 aftermarket replacement

Graco 24A253 Merkur LW075A 75cc Repair Kit — AfterMarket by Bedford Precision

This professional rebuild set replaces Graco 24A253 and is supplied as an AfterMarket by Bedford Precision Parts version of the OEM product. It refreshes the packing stack and critical seals in Merkur LW075A pump lowers (75 cc), restoring fast priming, stable pressure, and clean atomization to production lines feeding professional paint sprayer guns.

Where it fits & how it’s used

• Fits: Graco Merkur LW075A configurations that specify repair kit 24A253 for 75 cc lowers (always verify pump ratio, lower style, and BOM in your service manual).
• Used in: Wood/metal finishing, fabrication, equipment coating, and booth operations where uptime and repeatable film build matter.

What this kit restores

• Replaces worn upper/lower packings, backup rings, and O-rings that cause hard priming, leakage, pulsation, or pressure loss.
• Stabilizes operating pressure for uniform coverage and predictable spray patterns.
• Built to match OEM form and function for confident, drop-in installation during planned maintenance.

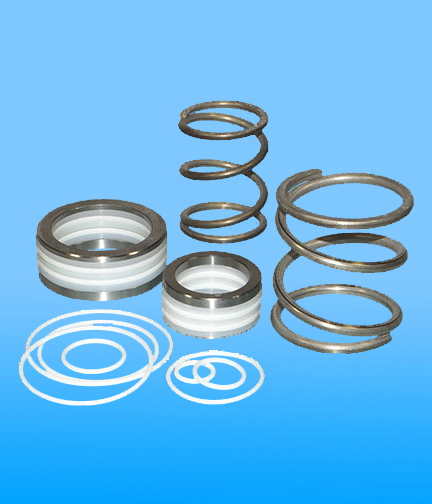

Typical contents*

• Packing elements for the 75 cc lower (upper/lower) with backup rings
• O-rings, glands/retainers, and related sealing hardware

Why choose this aftermarket kit

• Value-driven replacement that supports preventive maintenance without compromising finish quality.
• Consistent materials and dimensions for repeatable results across fleets standardized on graco paint sprayer parts.
• Works seamlessly in mixed-brand shops that also stock speeflo parts, wagner paint sprayer parts, and binks sprayer repair parts.

Installation notes

• Clean all wetted passages and mating surfaces; lubricate per the service manual and torque to specification.
• After reassembly, perform leak/pressure tests and verify pattern before returning to production.
• During routine service, confirm proper operation of the system’s pressure relief valve and prime valve.

Cross-reference: Replaces Graco 24A253 for Merkur LW075A (75 cc) pump lowers. Always confirm compatibility by model/serial and parts list. Keep essential graco airless sprayer parts on hand to minimize downtime.
