Bedford 20-3009 Repair Kit is Graco 24F967 aftermarket replacement

Graco 24F967 220cc Xtreme 900 Repair Kit — AfterMarket by Bedford Precision

This professional rebuild set replaces Graco 24F967 and is supplied as an AfterMarket by Bedford Precision Parts of the OEM product. It renews the packing stack and related wear components in Xtreme 900 pumps with 220 cc lowers so your system re-primes quickly, holds stable pressure, and delivers a clean, consistent finish.

Where it fits & how it’s used

• Fits: Graco Xtreme 900 pump configurations that specify a 220 cc lower and call for kit 24F967 (confirm ratio, lower size, and bill of materials in your service manual).
• Applications: Industrial finishing, fabrication, protective coatings, and booth operations feeding professional paint sprayer guns.

What this kit does

• Replaces worn upper/lower packings, backup rings, and seals that cause leakage, pulsation, or pressure loss.
• Helps restore prime and stabilize operating pressure for uniform film build and predictable atomization.
• Built to match OEM form and function for confident fitment and repeatable service results.

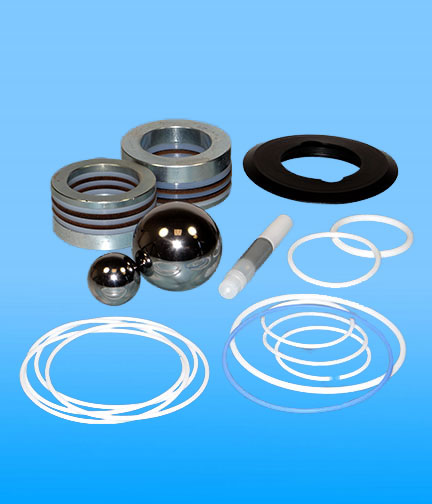

Typical contents*

• Packing sets (upper/lower) and backup rings
• O-rings and related sealing components
• Glands/retainers and small hardware for a standard lower-end rebuild

Installation notes

• Clean all wetted passages and mating surfaces; verify solvent/material compatibility.
• Lubricate per the service manual, torque to specification, and perform leak/pressure tests.
• Pattern-test with production material before returning the unit to service.
