Bedford 20-3194 is Graco 24N012 Repacking Kit aftermarket replacement

Graco 24N012 Repacking Kit for EH/GH 200DI & EH/GH 230/300 — AfterMarket by Bedford Precision

This professional rebuild set replaces Graco 24N012 and is supplied as an AfterMarket by Bedford Precision Parts of the OEM product. It renews the packing stack and key seals in EH/GH 200DI and EH/GH 230/300 pump lowers so your sprayer re-primes quickly, holds stable pressure, and delivers a clean, consistent finish to your production paint sprayer guns.

Where it fits & typical use

• Fits: Graco EH/GH 200DI and EH/GH 230/300 pump configurations that call for kit 24N012 (verify ratio, lower size, and BOM in your service manual).
• Used in: Wood/metal finishing, protective coatings, fabrication, and booth operations where uptime and repeatable film build are critical.

What this kit restores

• Replaces worn upper/lower packings and seals that cause hard priming, leakage, pulsation, or pressure loss.
• Stabilizes operating pressure for uniform coverage and predictable atomization.
• Built to match OEM form and function for confident, drop-in installation during planned maintenance.

Why choose this Bedford aftermarket solution

• Cost-effective alternative with consistent materials and dimensions for repeatable results across fleets standardized on graco paint sprayer parts.
• Supports preventive maintenance schedules to reduce downtime and extend component life.
• Compatible with mixed-brand shops that keep essential graco airless sprayer parts on the shelf.

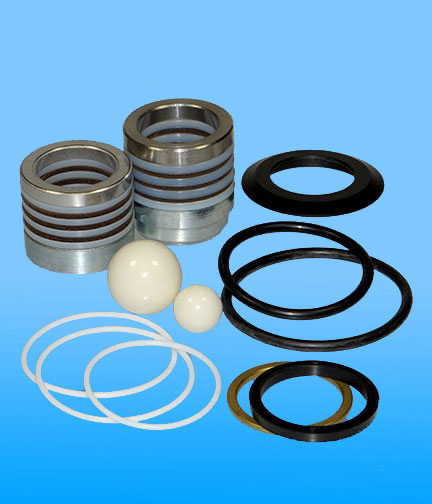

Typical contents*

• Packing sets (upper/lower) and backup rings
• O-rings and related sealing components
• Glands/retainers and small hardware for a standard lower-end service

Installation notes

• Clean all wetted passages and mating surfaces; lubricate per the service manual and torque to specification.
• After reassembly, perform leak/pressure tests and verify pattern before returning to production.
• During routine service, confirm the condition of your system’s pressure relief valve and prime valve.

Cross-reference: Replaces Graco 24N012 for EH/GH 200DI & EH/GH 230/300 pump lowers. Always confirm compatibility by model/serial and parts list.
