Bedford 20-3196 is Graco 24X096 Repacking Kit aftermarket replacement

Graco 24X096 Repacking Kit for GH230/300, EH230/300, DH230 — AfterMarket by Bedford Precision

This professional rebuild set replaces Graco 24X096 and is supplied as an AfterMarket by Bedford Precision Parts of the OEM product. It renews the packing stack and related seals in GH230/300, EH230/300, and DH230 pump lowers so your system can re-prime quickly, hold steady pressure, and deliver a clean, consistent pattern to your production paint sprayer guns.

Where it fits & typical use

• Fits: Graco GH 230/300, EH 230/300, and DH 230 configurations that call for kit 24X096 (verify pump ratio, lower style, and bill of materials in your service manual).
• Used in: Industrial finishing, fabrication, protective coatings, and booth operations where uptime and repeatable finish quality are critical.

What this kit restores

• Replaces worn upper/lower packings and seals that cause leakage, pulsation, or pressure loss.
• Stabilizes operating pressure for uniform film build and predictable atomization.
• Built to match OEM form and function for confident fitment and repeatable service results.

Why choose Bedford’s aftermarket solution

• Value-driven replacement that supports planned maintenance without compromising performance.
• Consistent materials and dimensions for reliable rebuilds across fleets standardizing on graco paint sprayer parts.
• Ideal for shops that keep critical graco airless sprayer parts on the shelf to minimize downtime.

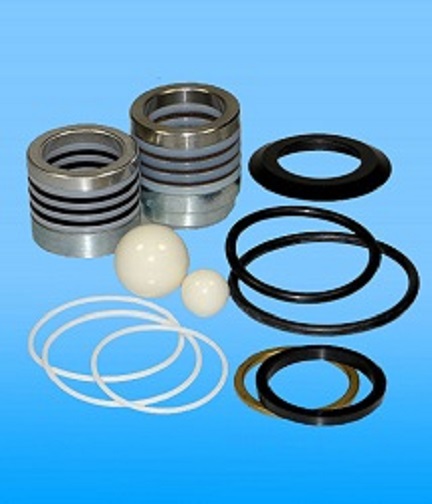

Typical contents*

• Packing sets (upper/lower), backup rings, and O-rings
• Glands/retainers and related wear items for the lower assembly

*Exact contents may vary by manufacturer supply. Inspect piston/rod, checks, balls, and seats; replace additional worn components as needed. Follow torque and lubrication specs in your service documentation.

Cross-reference: Replaces Graco 24X096 for GH230/300, EH230/300, DH230 pump lowers. Always confirm compatibility by model/serial and parts list.
