Bedford 20-3409 is Graco 25D235 Kit aftermarket replacement

Graco 25D235 Xtreme 180cc L/PE Kit — AfterMarket by Bedford Precision Parts

This is an AfterMarket by Bedford Precision Parts alternative to the Graco 25D235. Purpose‑built for the Xtreme 180cc pump lower configured with Leather/Polyethylene (L/PE) packings, it restores sealing integrity, reliable priming, and steady spray pressure so your team can maintain productivity and finish quality shift after shift.

Where it fits & how it’s used: Install this kit on Graco Xtreme 180cc L/PE lowers in fabrication shops, plants, shipyards, and field maintenance. It’s a smart refresh for equipment applying high‑solids coatings, epoxies, and corrosion‑protection systems—any workflow that demands consistent output and minimal downtime.

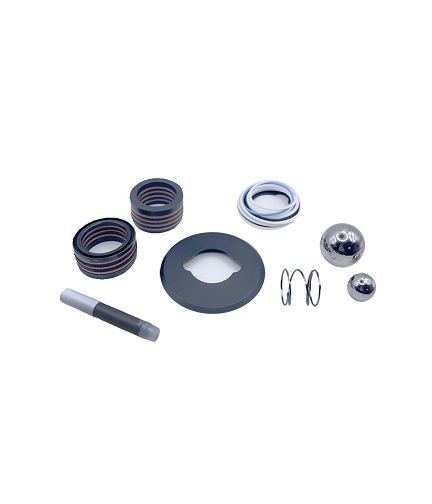

• Complete lower‑end service kit: throat and piston packings with compatible seals and O‑rings for a thorough rebuild.
• L/PE materials chosen for durability, chemical resistance, and low friction under high‑pressure duty cycles.
• Helps reduce pulsation, improve prime/hold, and keep film build on target.
• Bedford value: dependable fit and performance as a cost‑effective alternative to OEM components.

Installation tips: Safely de‑pressurize and flush the sprayer, then disassemble the lower. Inspect the rod and cylinder for scoring, replace worn hardware, and lubricate packings per the service manual. After reassembly, test the system’s pressure relief valve and perform a low‑pressure leak check before returning to full operating pressure.

Pro results, end to end: Pair a lower rebuild with gun‑side service to protect your finish quality. Fresh filters, clean fluid lines, and correctly sized tips help minimize overspray, orange peel, and rework across long production runs.
