Bedford 20-3571 is Graco 24N482 Intake Seat Kit aftermarket replacement

Graco 24N482 Intake Seat Kit — AfterMarket by Bedford Precision

This intake seat kit replaces Graco 24N482 and is supplied as an AfterMarket by Bedford Precision Parts version of the OEM product. Refreshing the intake seat restores reliable check action for fast priming, stable pressure, and clean atomization on demanding jobs.

Where it fits & how it’s used

Designed for Graco pump lowers and systems that specifically call out part 24N482 in the service manual. Common in industrial finishing, circulation, and transfer setups feeding professional paint sprayer guns. Always verify compatibility by model/serial, ratio, and bill of materials before ordering.

What this kit restores

• Replaces a worn intake seat that can cause air ingestion, hard priming, spitting, and pressure drop.
• Helps maintain uniform film build and predictable patterns across shifts.
• Built to match OEM form and function for confident, drop-in service.

Typical contents*

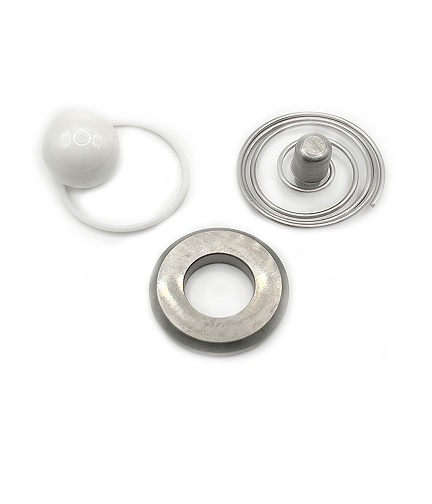

• Intake seat and related seals/retainers for the specified lower

*Exact contents may vary by manufacturer supply. Inspect piston/rod, balls, seats, and checks; replace additional worn components as needed.

Installation notes

• Clean all wetted passages and mating surfaces; use compatible lubricant and torque to spec.
• Leak/pressure test and perform a quick pattern check before returning to production.
• During routine maintenance, confirm proper operation of your system’s pressure relief valve.

Cross-reference: Replaces Graco 24N482 Intake Seat Kit. Verify against your service documentation for exact fit.
